Digital Transceivers
RIGOL’s SPQ Digital Array Measurement-and-Control System is purpose-built for advanced computing. Adopting a modular architecture, SPQ divides functionality into multiple service modules that deliver precise, versatile microwave control; data acquisition, analysis, and real-time feedback; bias-voltage generation with microwave overlay; clock and trigger distribution; and more. Through successive development stages, SPQ has evolved into an instruction-set–driven solution tailored to advanced-computing test needs, eliminating many pain points found in conventional measurement hardware. The system has already been deployed at dozens of customer sites, where it has run stably over the long term. Continuing to evolve alongside the latest functional and performance demands of advanced computing, SPQ has become a benchmark solution in this measurement-and-control domain.
4|8
8GSa/s | 4GSa/s
3.5GHz
GPU AI

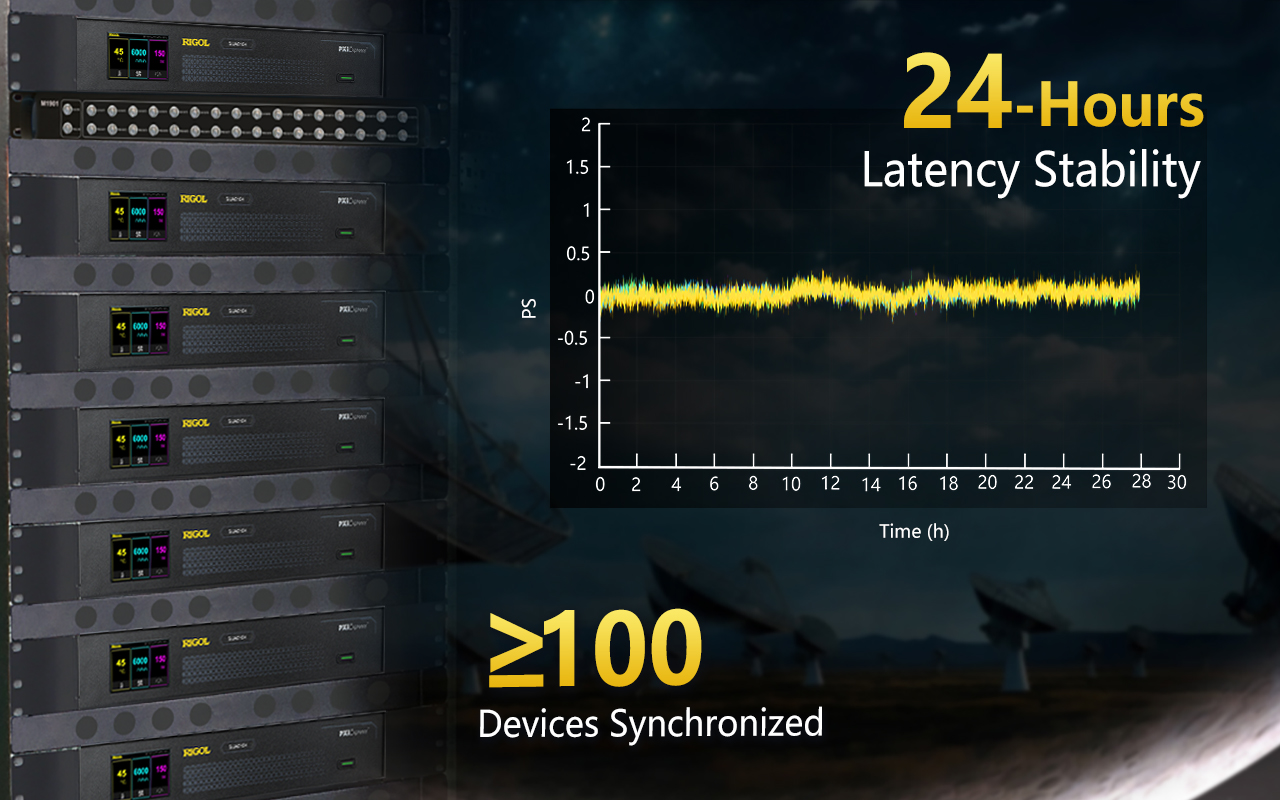

Long - Time Synchronous Operation of Multiple Devices
The SUA8000 Series supports synchronized operation of more than 100 instruments with exceptional long-term stability: intra-device channel-to-channel delay stays within 1 ps, while inter-device channel synchronization holds within 10 ps—reliable enough for 24/7 array transceiver systems. Such outstanding timing performance sharply boosts system coherence, delivering robust technical support for large-scale distributed transceiver applications.
Master Control Dual Options
The SUA8000 Series offers two master-control options to suit different application needs: a CPU control module built around a high-performance V2000 processor for superior computation and task scheduling, and a GPU-AI control module based on the powerful Orin AGX platform, optimized for AI and deep-learning workloads to handle complex data analytics and intelligent processing.

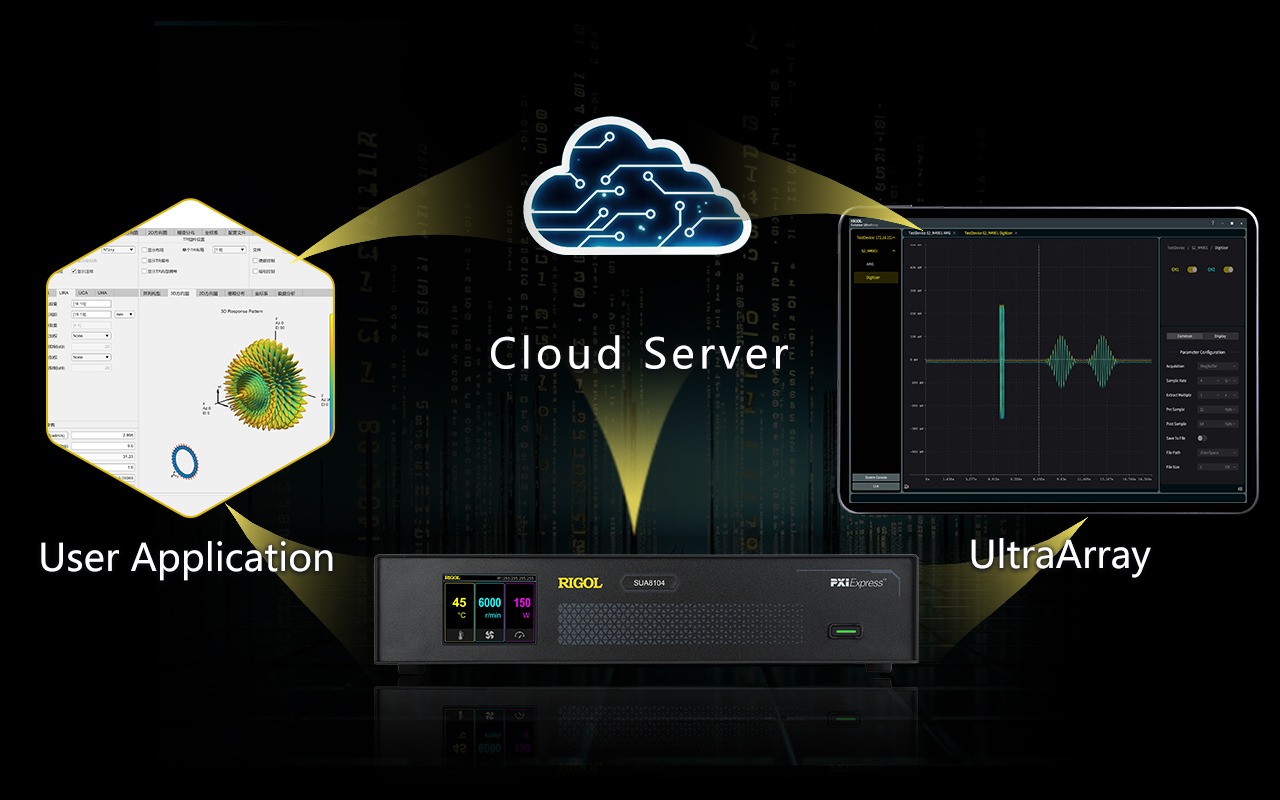

Arrayed Console
The SUA8000 Series adopts the web-based UltraArray control platform, enabling local and remote device management with true plug-and-play convenience. A comprehensive library of built-in APIs simplifies secondary development: users may operate the instruments directly through the interface or tap the APIs to quickly build and deploy customized systems, execute complex tasks, and meet diverse application needs.

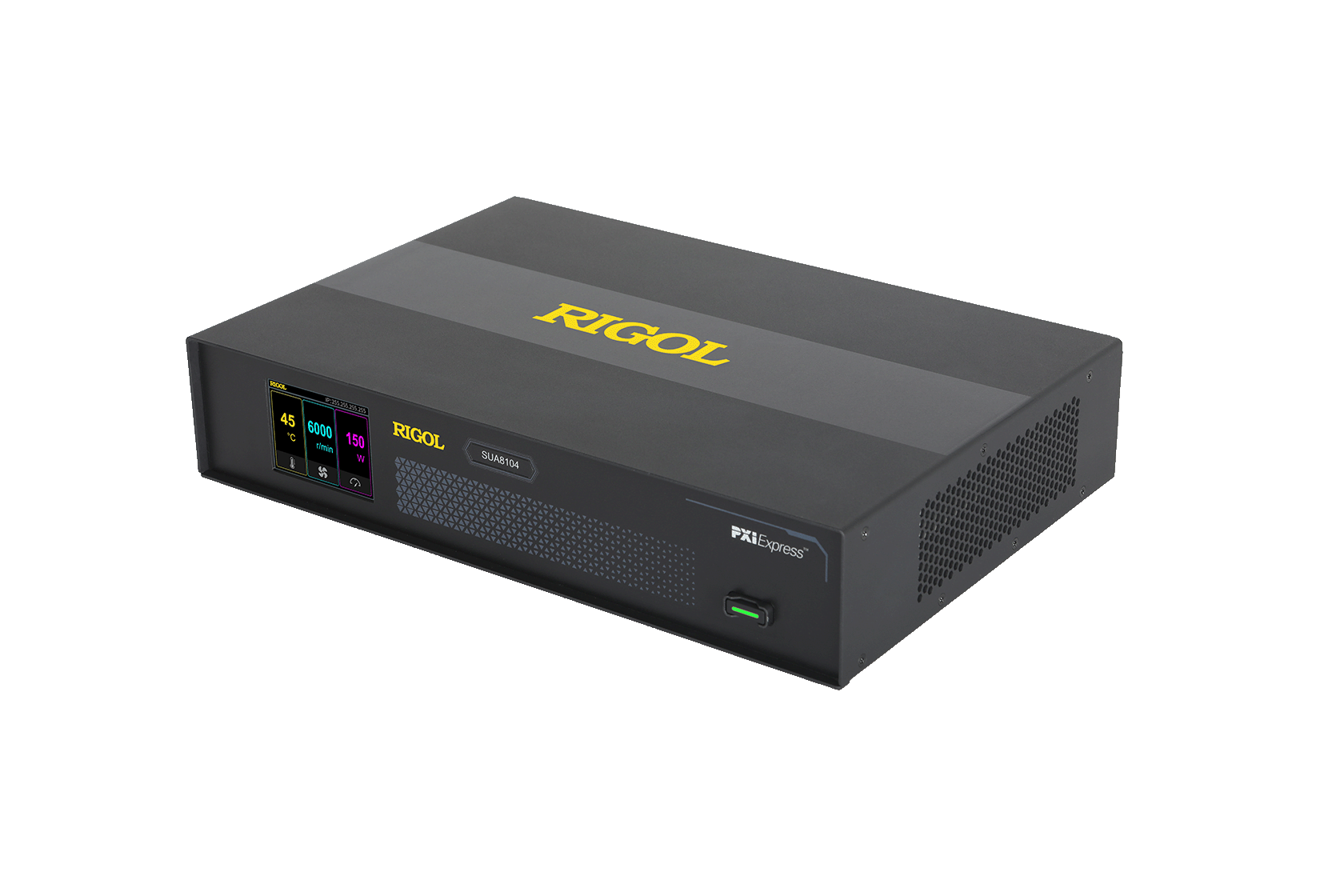

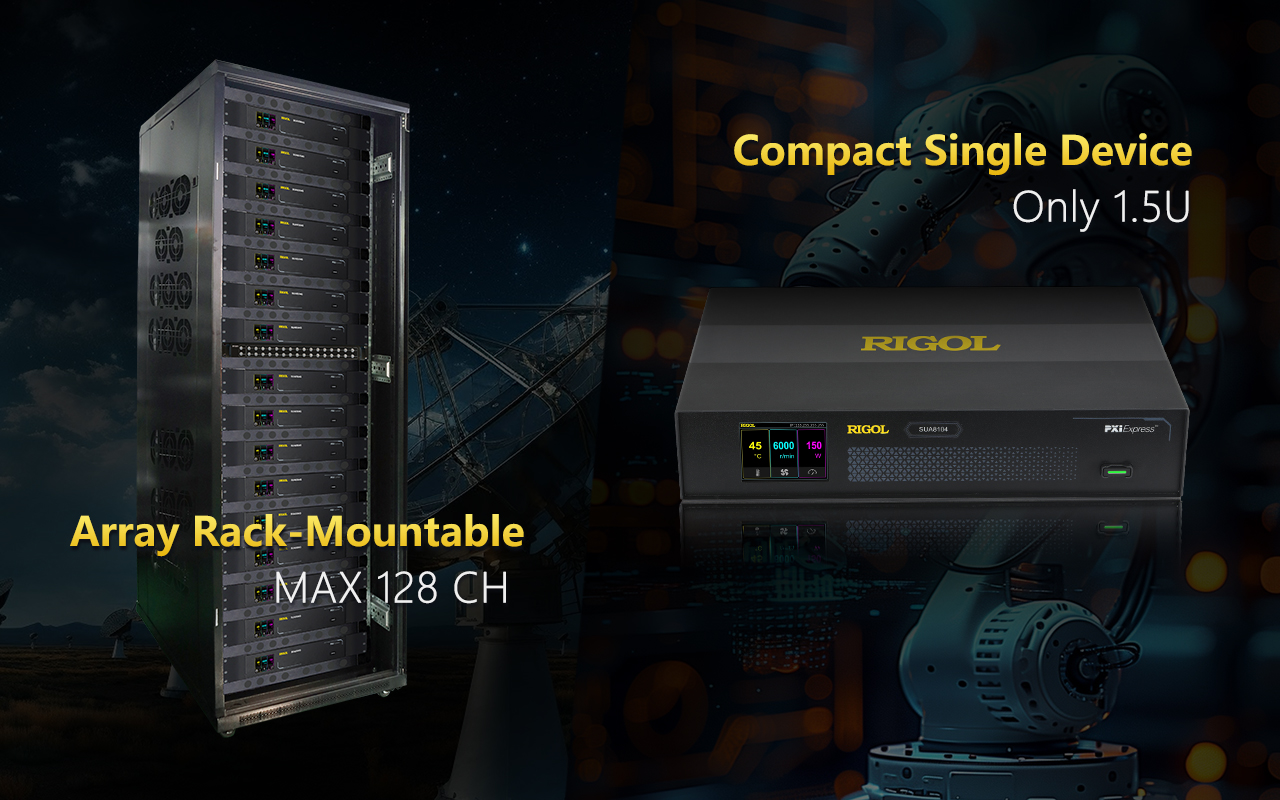

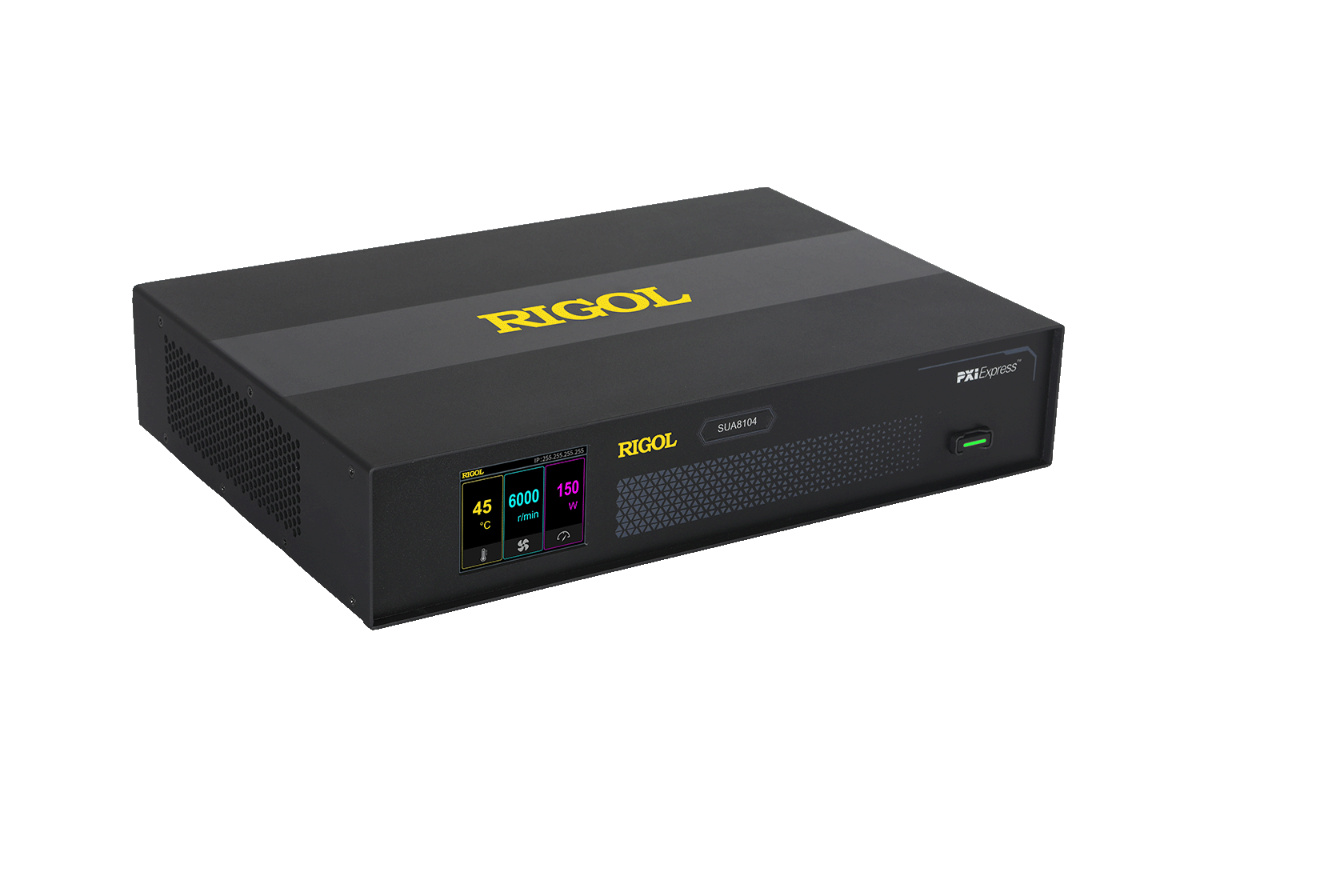

Highly Integrated and Compact Body
Compact SUA8000 units slip easily into existing systems, custom benches, or tight nested setups. A 1.5-U chassis holds up to eight channels, so a 32-U rack can host 128—maximizing space and simplifying layouts in labs, production lines, and other centralized test sites.
Multi-industry Solution Applications
From radio-astronomy asteroid hunts and power-grid partial-discharge monitoring to automotive-radar IF tests, engineers rely on the SUA8000. Its precise generate/capture paths and smart processing yield accurate, efficient results across demanding research, industrial, and commercial tasks.
-
ModelANALOG CHANNELS T|RSAMPLE RATE T|RANALOG BANDWIDTHMAX. MEMORY DEPTHMASTER CONTROLPRICE (Exclude Taxes)
-
SUA81044|08GSa/s | -3.5GHz1GptsCPU
-
SUA82040|4- | 4GSa/s1.5GHz1GptsCPU
-
SUA82080|8- | 4GSa/s1.5GHz512MptsCPU
-
SUA83042|24GSa/s | 4GSa/s1.5GHz1GptsCPU
-
SUA8104G4|08GSa/s | -3.5GHz1GptsGPU AI
-
SUA8204G0|4- | 4GSa/s1.5GHz1GptsGPU AI
-
SUA8208G0|8- | 4GSa/s1.5GHz512MptsGPU AI
-
SUA8304G2|24GSa/s | 4GSa/s1.5GHz1GptsGPU AI
- NAME
- VERSION
- RELEASE DATE
- DOWNLOAD
-
SUA8000 DatasheetSUA8000 Datasheet - V1.0
- 2025-07-08
-
PDF
- NAME
- VERSION
- RELEASE DATE
- DOWNLOAD
-
SUA8000 Quick GuideSUA8000 Quick Guide
- V1.0
- 2025-07-08
-
PDF
