Digital Oscilloscope

DHO4000 Series

The DHO4000 Series Digital Oscilloscopes are equipped with a second generation chipset developed by RIGOL. With a low noise floor and 12 bits, these high-resolution oscilloscopes are capable of finding the tiniest signals.

DataSheet

Trial-Request

Product Information
Contact US
Starting Price (Exclude Taxes)
-

800MHz

BANDWIDTH

4GSa/s

REAL-TIME SAMPLE RATE

4

ANALOG CHANNELSREAL-TIME

500Mpts(opt.)

MAX. MEMORY DEPTH

1,500,000wfms/s

WAVEFORM CAPTURE RATE
FEATURES
MODEL
SOFTWARE & FIRMWARE
PROBE
UPGRADE & ACCESSORIES
MANUAL
FEATURES

Industry-leading, low noise floor

18uVrms ultra-low noise floor (typical), cleaner signal.

High-resolution 12-bit

All DHO4000 series oscilloscopes are equipped with Rigol's second generation "Centaurus" chipset, which provides 12-bit support.This allows the DHO4000 series oscilloscopes to capture waveforms 16 times more accurately and clearly than their predecessors' 8-bit counterparts.

UltraAcquire mode

Supports UltraAcquire mode as standard, up to 1,500,000 wfms/s waveform acquisition rate. Not a single abnormal signal is missed.

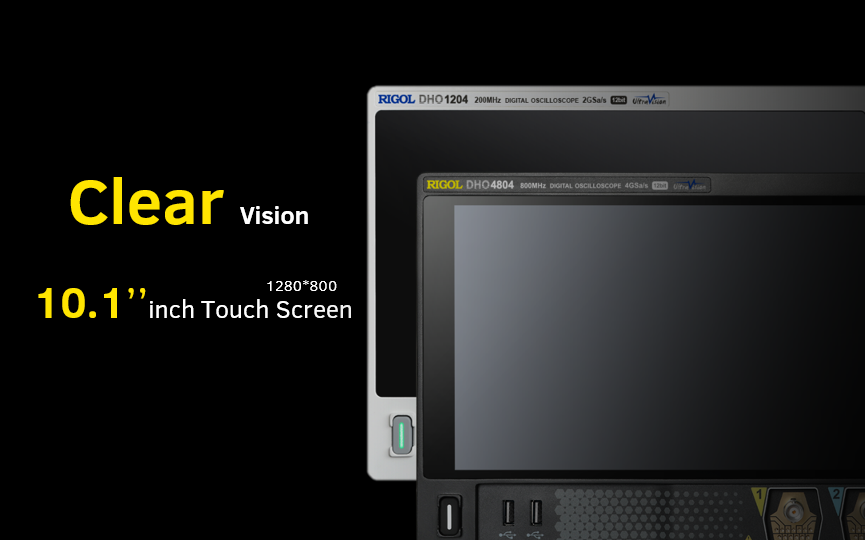

10.1" HD touch panel

Rigol's new UI and 10.1" HD touch panel, supporting engineers with high efficiency

Flex knob button

The dual multi-function knob eliminates the complex switching steps of a single knob, resulting in more efficient interaction.

  • MODEL
    BANDWIDTH
    ANALOG CHANNELS
    REAL-TIME SAMPLE RATE
    MAX. MEMORY DEPTH
    WAVEFORM CAPTURE RATE
    DIGITAL CHANNELS
    BUILT-IN SIGNAL SOURCE
    PRICE (Exclude Taxes)
  • DHO4804
    800MHz
    4
    4GSa/s
    500Mpts(opt.)
    1,500,000wfms/s
    -
    -
  • DHO4404
    400MHz
    4
    4GSa/s
    500Mpts(opt.)
    1,500,000wfms/s
    -
    -
  • DHO4204
    200MHz
    4
    4GSa/s
    500Mpts(opt.)
    1,500,000wfms/s
    -
    -
FIRMWARE DOWNLOAD
  • NAME
  • VERSION
  • RELEASE DATE
  • DOWNLOAD
  • DHO4000 Firmware
    DHO4000 Firmware
  • 00.02.13.00.07
  • 2024-06-18
  • DOWNLOAD
SOFTWARE DOWNLOAD
  • NAME
  • VERSION
  • RELEASE DATE
  • DOWNLOAD
  • Ultra Sigma HelpDocument
    Ultra Sigma HelpDocument
  • V1.0
  • 2021-11-01
  • DOWNLOAD
  • Ultra Sigma patch file for MSO8000
    Ultra Sigma patch file for MSO8000
  • V1.1
  • 2021-11-01
  • DOWNLOAD
  • Ultra Sigma (PC) Installer
    Ultra Sigma (PC) Installer
  • V00.01.06.01
  • 2021-11-01
  • DOWNLOAD
  • Ultra Scope Software
    Ultra Scope Software
  • V00.01.02.13
  • 2021-11-01
  • DOWNLOAD
  • DHO4000 IVI Driver
    DHO4000 IVI Driver
  • V1.0
  • 2024-04-11
  • DOWNLOAD
PASSIVE PROBE
MODEL
DESCRIPTION
PRICE
MANUAL
RP1018H
18kV 150MHzHigh voltage probe
$ 985
DOWNLOAD
RP1300H
300MHzHigh voltage probe(2kV)
$ 232
DOWNLOAD
RP6150A
1.5GHzPassive low resistance probe（500ohm）
$ 318
DOWNLOAD
RP3500A
500MHzPassive high resistance probe
$ 217
DOWNLOAD
ACTIVE PROBE
MODEL
DESCRIPTION
PRICE (Exclude Taxes)
MANUAL
PVA7250
2.5GHzActive differential probe
$ 5652
DOWNLOAD
RP7150S
1.5GHz Active single-ended probe
$ 2460
DOWNLOAD
RP7150
1.5GHzActive differential probe
$ 4487
DOWNLOAD
RP7080S
800MHz Active single-ended probe
$ 1042
DOWNLOAD
RP7080
800MHzActive differential probe
$ 2026
DOWNLOAD
CURRENT PROBE
MODEL
DESCRIPTION
PRICE
MANUAL
RP1006C
2MHz，500A
$ 5490
DOWNLOAD
PCA1500
2MHz, 500A Current Probe
$ 6490
DOWNLOAD
PCA1150
Current probe：10MHz，150A
$ 5490
DOWNLOAD
RP1002C
1MHz，70ADC
$ 1736
DOWNLOAD
PCA1030
Current probe：50MHz，30A
$ 4590
DOWNLOAD
RP1000P
4CHPower Adapter
$ 1447
-
RP1005C
10MHz,150A
$ 4053
-
RP1004C
100MHz,30A
$ 4632
-
RP1003C
50MHz,30A
$ 3184
-
RP1002C
1MHz，70ADC
$ 1736
-
RP1001C
300KHz，100A DC
$ 825
-
HIGH VOLTAGE DIFFERENTIAL PROBE
MODEL
DESCRIPTION
PRICE (Exclude Taxes)
MANUAL
PHA2150
200MHz, 1500V High Voltage Differential Probe
$ 1590
-
PHA1150
High voltage differential probe，DC-100MHz，1500V
$ 999
DOWNLOAD
PHA0150
High voltage differential probe，DC-70MHz，1500V
$ 799
DOWNLOAD
RP1100D
High Voltage Differential Probe，100MHz，3.5KV
$ 753
DOWNLOAD
RP1050D
High Voltage Differential Probe，50MHz，3.5KV
$ 651
DOWNLOAD
RP1025D
High Voltage Differential Probe,25MHz,700V
$ 449
DOWNLOAD
BANDWIDTH UPGRADE
MODEL
DESCRIPTION
PRICE
DHO4000-BWU2T4
200M to 400M bandwidth upgrade option
$ 1199
DHO4000-BWU2T8
200M to 800M bandwidth upgrade option
$ 2199
DHO4000-BWU4T8
400M to 800M bandwidth upgrade option
$ 1199
FUNCTIONAL OPTIONS
MODEL
DESCRIPTION
PRICE
DHO4000-RLU-05
500Mpts storage depth upgrade option
$ 449
DHO4000-AUTOA
CAN-FD/LIN bus triggering and analysis options
$ 299
DHO4000-AEROA
MIL-STD1553 bus triggering and analysis options
$ 299
DHO4000-FLEXA
FlexRay Serial Bus Triggering and Analysis Options
$ 299
DHO4000-AUDIOA
I2S bus trigger and analysis options
$ 299
DHO4000-PWRA
Power Analysis Options
$ 299
DHO4000-BND
DHO4000 Bundle Option
$ 799
USER MANUAL
  • USER MANUAL
  • VERSION
  • RELEASE DATE
  • DOWNLOAD
  • DHO4000 User Manual
    DHO4000 User Manual
  • V1.0
  • 2023-01-10
  • PDF
  • BatHolder138 User Manual
    BatHolder138 User Manual
  • V2.0
  • 2024-07-02
  • PDF
    DOWNLOAD
DATASHEETS
  • NAME
  • VERSION
  • RELEASE DATE
  • DOWNLOAD
  • DHO4000 Datasheets
    DHO4000 Datasheets
  • V1.0
  • 2023-01-10
  • PDF
PROGRAMMING MANUAL
  • NAME
  • VERSION
  • RELEASE DATE
  • DOWNLOAD
  • DHO4000 Programming Manual
    DHO4000 Programming Manual
  • V1.0
  • 2023-01-10
  • PDF
QUICK GUIDE
  • NAME
  • VERSION
  • RELEASE DATE
  • DOWNLOAD
  • DHO4000 Quick Guide
    DHO4000 Quick Guide
  • V1.0
  • 2023-01-10
  • PDF
