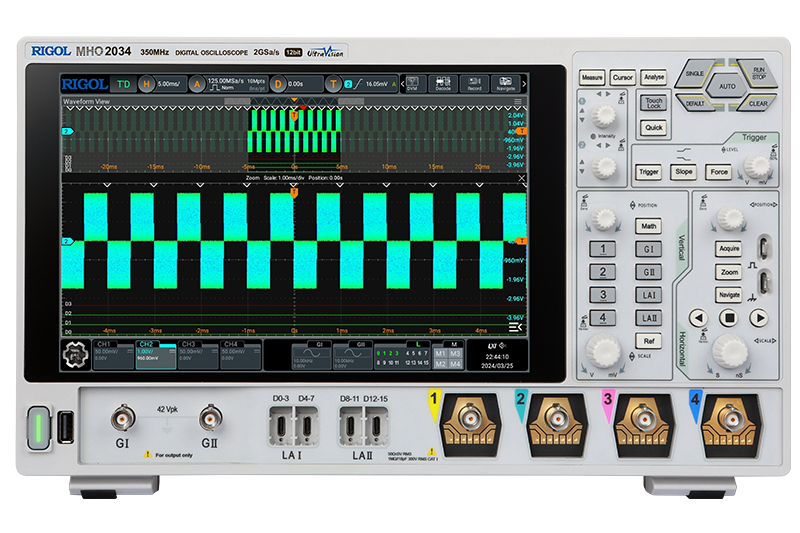

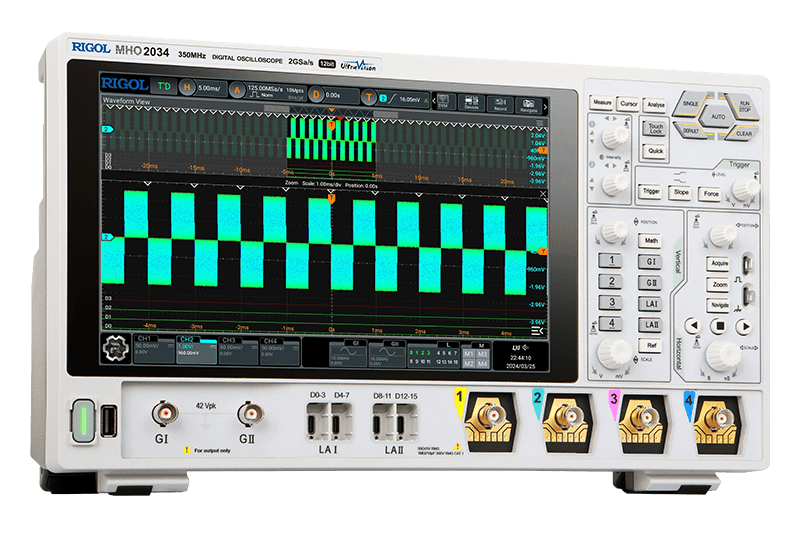

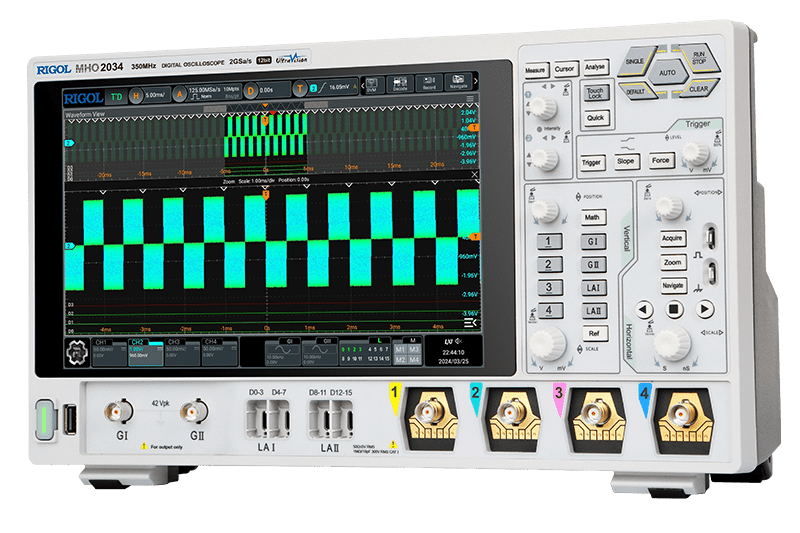

Digital Oscilloscope
The MHO2000 series is a high-resolution, reliable, and cost-effective mixed-signal digital oscilloscope with up to 350 MHz bandwidth. It features a 12-bit ADC and integrates functions such as protocol analysis, logic analysis, and signal generation. Ideal for power, medical, and automotive electronics, the MHO2000 enables efficient, multi-dimensional testing and analysis.
350MHz
2GSa/s
4
500Mpts
1,000,000 wfms/s
Ultra-high resolution capturing tiny details
The MHO2000 series features excellent 12-bit resolution with up to 4096 quantization levels, greatly improving measurement accuracy. Compared to 8-bit oscilloscopes, it delivers up to 16× detail, capturing subtle signal variations. With vertical sensitivity down to 200 μV/div, it’s ideal for power ripple or medical signal testing, ensuring precise analysis for innovation and reliability.
Versatile triggering and decoding for diverse industries
The MHO2000 series offers multiple trigger types—edge, interval, timeout, video, serial bus, and area trigger—for reliable capture of abnormal signals. It also supports I2C, SPI, CAN, CAN-FD, FlexRay, I2S, MIL-STD-1553B, SENT, and more, meeting bus testing needs across embedded, automotive, and computing industries.

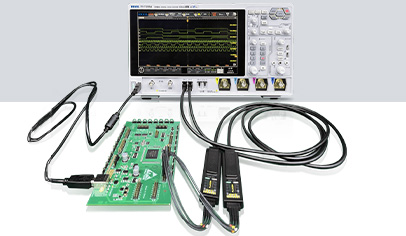

Standard digital channel, stable signal transmission
The MHO2000 series comes standard with digital channels and supports the PLA3204 logic probe for efficient analog and digital signal debugging. This setup enables deep digital analysis and precise capture of signal interactions in complex systems, ensuring high efficiency and accuracy in R&D, troubleshooting, and performance optimization to boost project success rates.
Built-in function generator for advanced analysis
The MHO2000 series high-resolution digital oscilloscope supports a built-in dual-channel signal generator with 16-bit resolution, providing waveform output up to 50MHz, including sine wave, square wave, triangle wave, pulse wave, noise, DC, and a variety of built-in arbitrary waves, which can be widely used in various scientific experiments and industrial control fields.
-
MODELBANDWIDTHANALOG CHANNELSREAL-TIME SAMPLE RATEMAX. MEMORY DEPTHWAVEFORM CAPTURE RATEDIGITAL CHANNELSBUILT-IN SIGNAL SOURCEPRICE (Exclude Taxes)
-
MHO2034350MHz42GSa/s500Mpts1,000,000 wfms/s16(Probe opt.)50MHz, 2CH（opt.）
-
MHO2024200MHz42GSa/s500Mpts1,000,000 wfms/s16(Probe opt.)50MHz, 2CH（opt.）
- NAME
- VERSION
- RELEASE DATE
- DOWNLOAD
-
MHO2000 DatasheetsMHO2000 Datasheets - V1.0
- 2025-05-08
-
PDF
- NAME
- VERSION
- RELEASE DATE
- DOWNLOAD
-
MHO2000 User GuideMHO2000 User Guide
- v1.0
- 2025-05-08
-
PDF
- NAME
- VERSION
- RELEASE DATE
- DOWNLOAD
-
MHO2000 Programming GuideMHO2000 Programming Guide
- v1.0
- 2025-05-13
-
PDF
